Firstly, let me briefly introduce the working principle of the resistance rotary level gauge:

The blades of the resistance rotary level switch are connected to the clutch through a transmission shaft. When not in contact with materials, the motor maintains normal operation; When the blade contacts the material, the motor power is disconnected and stops rotating, and the mechanism simultaneously outputs a contact signal indicating that the material level has reached the set height.

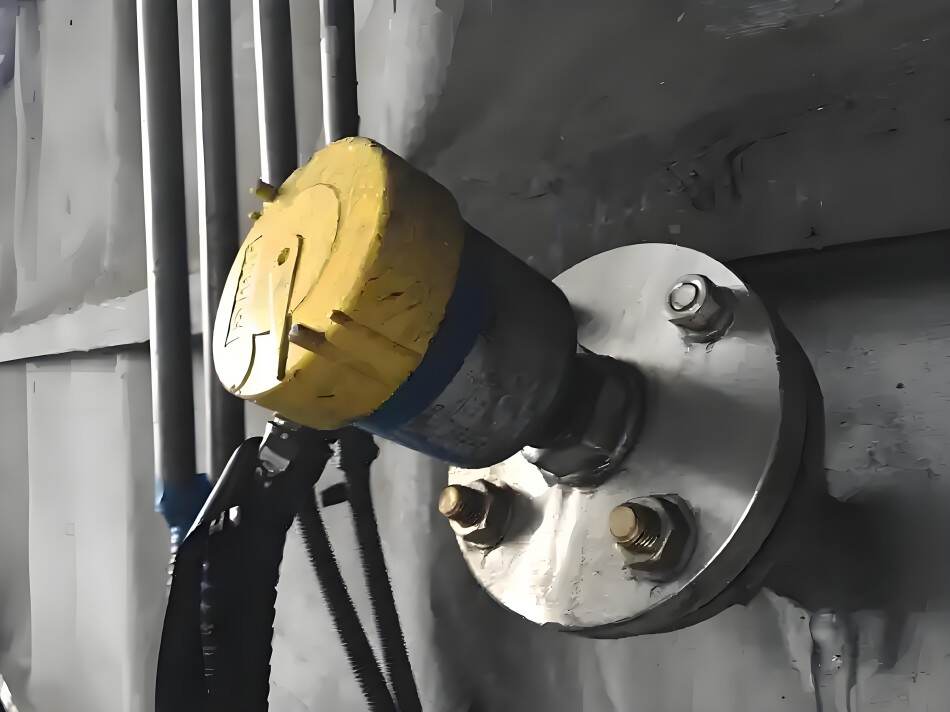

During installation, the following points should be noted:

When installing horizontally, it is recommended to install the switch at a horizontal downward angle of 15 ℃~20 ℃. To reduce the impact of materials.

2. The inlet of the junction box must face downwards, and the cable fixing nut must be locked tightly

3. During power transmission, it should be confirmed that the voltage used is correct

4. The load of the monitored line must match the capacitance of the switch connection

5. Avoid bridge breakers or vibration motors near the installation of the product.

6. Avoid installing switches near the feeding port to reduce blade damage and misoperation during feeding; If the switch must be installed near the feeding port, please install a 2 "wide protective baffle 20mm above the switch

7. When installing each product, choose horizontal or vertical installation according to its model.

When disassembling and installing the adjustable shaft length switch on site, the direction joint must be connected to the transmission shaft, and the locking nut must be coated with oxygen deficient glue before being tightened with a wrench.

9. On site installation and maintenance must comply with the warning message of opening the cover after disconnecting the power supply.

10. There should be no toxic gases present at the installation site that can corrode aluminum alloys

11. The maximum temperature of the tested medium should not exceed the temperature indicated on the product label

Torque adjustment

Users can adjust the torque according to the specific gravity of the tested object. When the specific gravity of the measured object is high, the spring torque can be adjusted to a strong position, but the sensitivity of the blade is poor at this time; The smaller the specific gravity of the measured object, the weaker the spring can be adjusted, indicating better sensitivity of the blade

Specific method: Open the junction box, take out the torsion spring near the porous end, and insert it into the corresponding hole as needed. Pay attention to the torsion of the torsion spring during use and do not replace it randomly to avoid misoperation

Common Faults

The material exceeds the blade position and the blade is still rotating, which may be due to the blade size not matching the specific gravity of the material. The blade size should be reconfirmed

Blade deformation or transmission shaft deformation and bending may be due to excessive material impact force, and appropriate protective measures should be taken

The blades cannot rotate; The power supply is not connected properly. The wiring should be checked and connected properly, or the motor may be burnt out. The company should be contacted to replace the motor.

routine maintenance

Check whether the transmission shaft and blades are bent, deformed or severely damaged

Check if the connection between the drive shaft and the blades is secure

Regularly clean the materials and debris on the blades and transmission shaft

Unpacking and inspection

The packaging should be intact and undamaged,

If any damage or looseness is found during unboxing of this product, notify promptly for replacement.
