The ZXRE-T wall mounted ultrasonic mud water interface meter is designed by our company specifically for continuous online monitoring of sludge interfaces in sewage treatment processes. The reliable ultrasonic echo detection principle of this product detects the distance between the sensor probe and the sludge interface and the distance to the bottom surface, realizing real-time monitoring of sludge thickness changes and related process control, thereby optimizing sludge discharge control and dosing control, preventing water deterioration, avoiding sludge denitrification and decomposition, and optimizing process control flow.

Performance characteristics:

★ Principle of Ultrasonic Echo Measurement

★ Sound wave energy regulation adapts to various measurements

★ Fault alarm

★ Equipped with guide blocks to prevent turbulence and noise at high flow rates

★ SD card data collection

★ USB output

★ Micro printer

Output (order selection)

Analog output: 4-20mA

Digital output: RS485/Modbus, HART

Wireless transmission: GPRS, LORA, NB, RF, Bluetooth, Wifi, etc

Switch output: four-way NPN, four-way relay (AC: 5A 250V DC: 10A 24V)

power supply

Voltage: AC220V or DC12-24V

Power consumption:<5W

Physical properties

Host material: ABS

Sensing material: 304

Host size: 180mm × 160mm × 76mm

Connection method: G1/2

Keyboard: Full keyboard keys

Sensor cable: 10m cable (customizable)

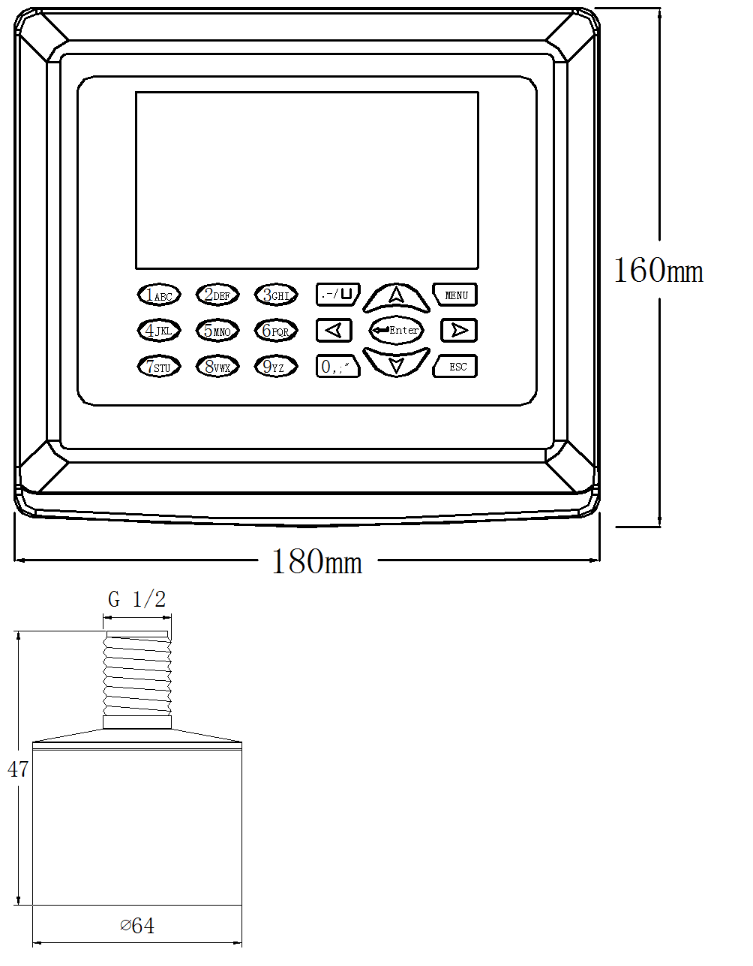

Product size (unit: mm)
