ZH-A1 Oilfield Load Sensor

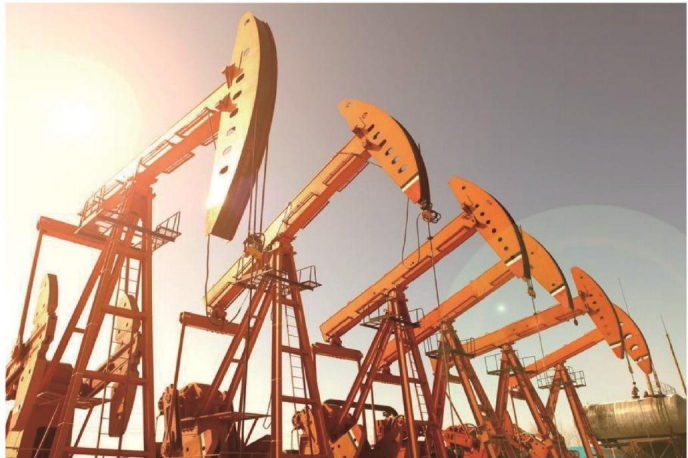

Used for oilfield project measurement, the sensor has the characteristics of easy installation, good sealing, good comprehensive accuracy, anti-corrosion, moisture-proof, dust-proof, and good dynamic performance.额定载荷 Rated Load100～300（kN）综合精度 Comprehensive Precision0.3%F·S灵敏度 Sensitivity1.0～1.5 mV/V蠕变 Creep±0.05 %F·S/30min零点输出 Zero Output±1 %F·S零点温度影响 Temperature Effect On Zero±0.05 %F·S/10℃输出温度影响 Temperature Effect On Output±0.05 %F·S/10℃工作温度 Operating Temperature Range-20℃～+65℃输入阻抗 Input Resistance750±10 Ω输出阻抗 Output Resistance700±3 Ω绝缘电阻 Insulation Resistance>5000 MΩ安全过载 Safe Load Limit150% F·S供桥电压 Bridge Voltage建议 10V DC材质 Material合金钢Alloy Steel传感器接线方式Load Cell Mode of Connection输入+:红 Input+: Red输入-:黑 Input-:Black输出+:绿 Output+:Green输出-:白 Output-:WhiteFor more pro…
